Bearing Specification

Designation: 7913 AC TA

Type

Open

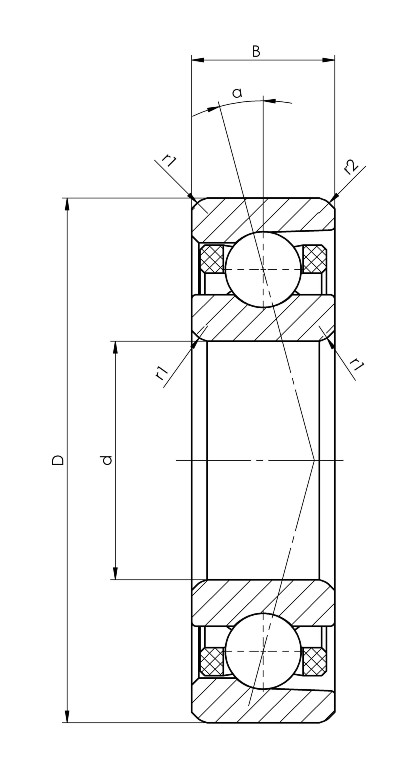

Dimensions [mm]

Bore (d)
65.000
Outer Diameter (D)
90.000
Width (B)
13.000

Radii

r1 Max
1.00
r2 Max Non-Thrust Side
0.30

Material

Rings
100Cr6
Balls
Steel
Cage
Phenolic
Closures
n/a

Cage Type

One-Piece Halo

Closures

n/a

Quality Standard

P4S

Contact Angle α [°]

25

Capacity [N]

Dynamic C
22010
Static C0 Radial
19920

Limiting Speed [min-1]

Oil
20000
Grease
16000

Preload Fva [N]

L
115.00
M
225.00
S
665.00

Axial Rigidity ca [N/µm]

L
43.80
M
55.70
S
82.10

Unloading Force KaE [N]

L
310.00
M
640.00
S
1990.00
